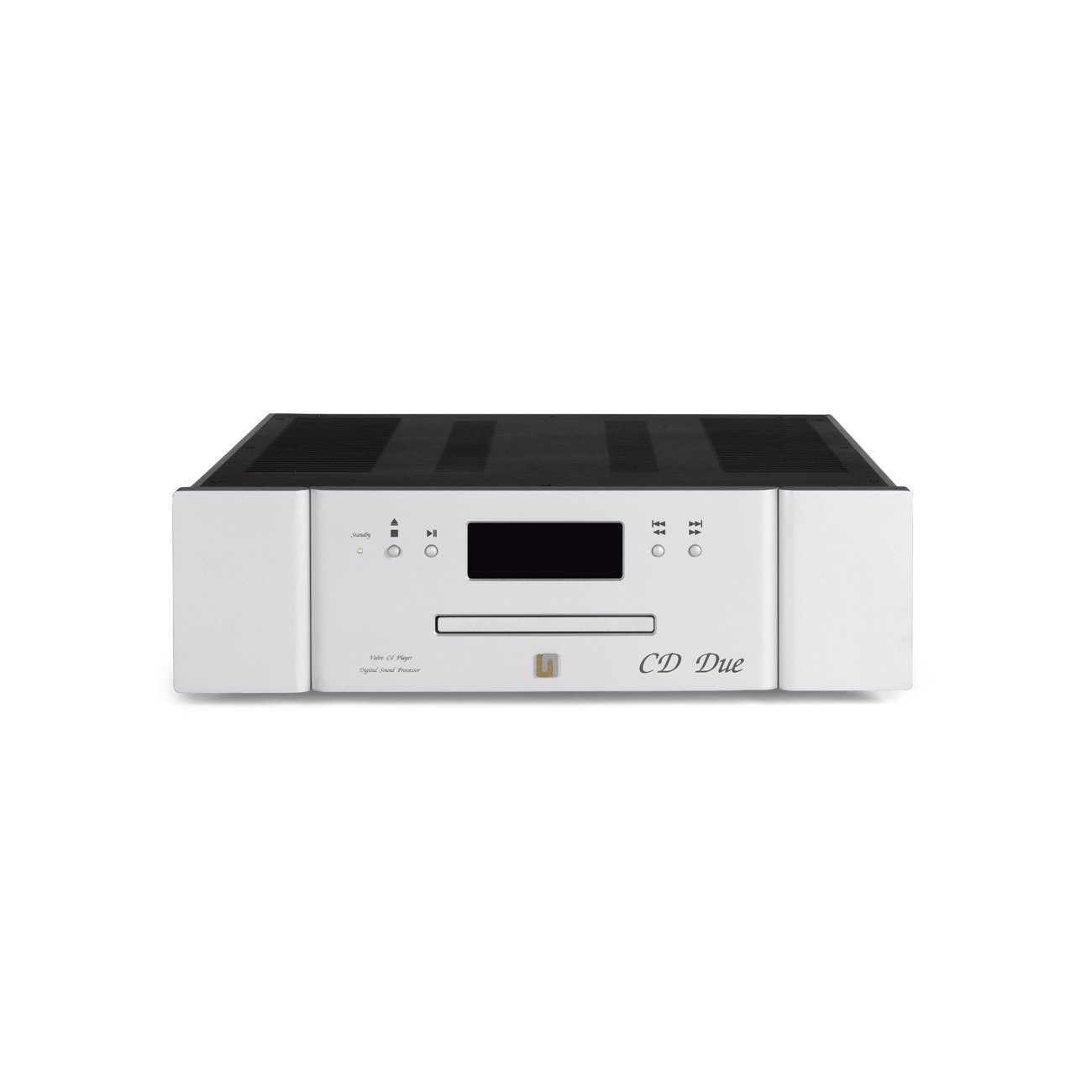

Unison Research Unico CD Due
DESCRIPTION
Not just a CD player, the Unico CDDue combines a high-level DAC with a top-end CD mechanism. It’s feature-rich, flexible and customizable to the listener’s preference. A variety of external sources can be connected to the Unico CDDue, including a laptop or computer for playing all known audio formats – including DSD – via USB.
DESCRIPTION
Not just a CD player, the Unico CDDue combines a high-level DAC with a top-end CD mechanism. It’s feature-rich, flexible and customizable to the listener’s preference. A variety of external sources can be connected to the Unico CDDue, including a laptop or computer for playing all known audio formats – including DSD – via USB.
DESCRIPTION
Not just a CD player, the Unico CDDue combines a high-level DAC with a top-end CD mechanism. It’s feature-rich, flexible and customizable to the listener’s preference. A variety of external sources can be connected to the Unico CDDue, including a laptop or computer for playing all known audio formats – including DSD – via USB.
PRODUCT DETAILS
Digital Inputs
1 x USB- USB 2.0 Audio Class
Frequencies- 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, DSD64, DSD128, DSD256 Ready
Resolution- 16 to 32 bits
1 x S/PDIF
Sensitivity- 0.5Vpp on 75 Ohms
Sampling frequencies- 44.1, 48, 88.2, 96, 176.4, 192
DSD64 (DoP)
Resolution- 16 to 24 bits
1x AES/EBU
Sensitivity- 2Vpp on 110 Ohms
Sampling frequencies- 44.1, 48, 88.2, 96, 176.4, 192
DSD64 (DoP)
Resolution- 16 to 24 bits
1x Toslink™
Sampling frequencies- 44.1, 48, 88.2, 96 (176.4 and DSD64-DoP with high efficiency transmitters)
Resolution- 16 to 24 bits
1 x Bluetooth™ Receiver- BT 3.0
Profiles- A2DP, SSP (HID supported with Android smartphones through SPP)
Sampling frequencies- 44.1kHz, 48kHz
Resolution- 16 bits
Digital Output
1x S/PDIF
Output voltage- 0.5Vpp on 75 Ohms
1x AES/EBU
Output voltage- 2Vpp on 110 Ohms
1x Toslink™
Transport- 8829CD-KHM DVD-Loader , Only audio CD
Display- 128 X 64 White OLED graphic display , (can be turned off)
Digital to Analogue Stage
DAC- ESS Sabre ES9018K2M with jitter eliminator
SNR- 128dB (0dBFS, 1kHz, 192kHz, “A” weighted)
THD+N- 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
Timing- low phase noise, high precision crystal oscillators
IV converter- AD8597/AD8599 ultralow distortion, ultralow noise, use high-quality components like wima capacitor and wishay resistor
Output Audio Stage
Number of channels- 2
Output stage- Double Triode, pure class A differential Totem-pole
Valve complement- 4 x 12AX7/ECC83
Output audio connectors-
1 x RCA stereo
1 x XLR stereo
Optional buffer- AD8597/AD8599 output buffer can be activated by remote control normally bypassed by relay
General Specification
Remote control- 1 x Infrared in wood and metal
Disc Formats- CD Audio
Weights & Dimensions
Power consumption- 100W max
Dimension- 45cm x 38cm x 13cm
Net weight- 10Kg
