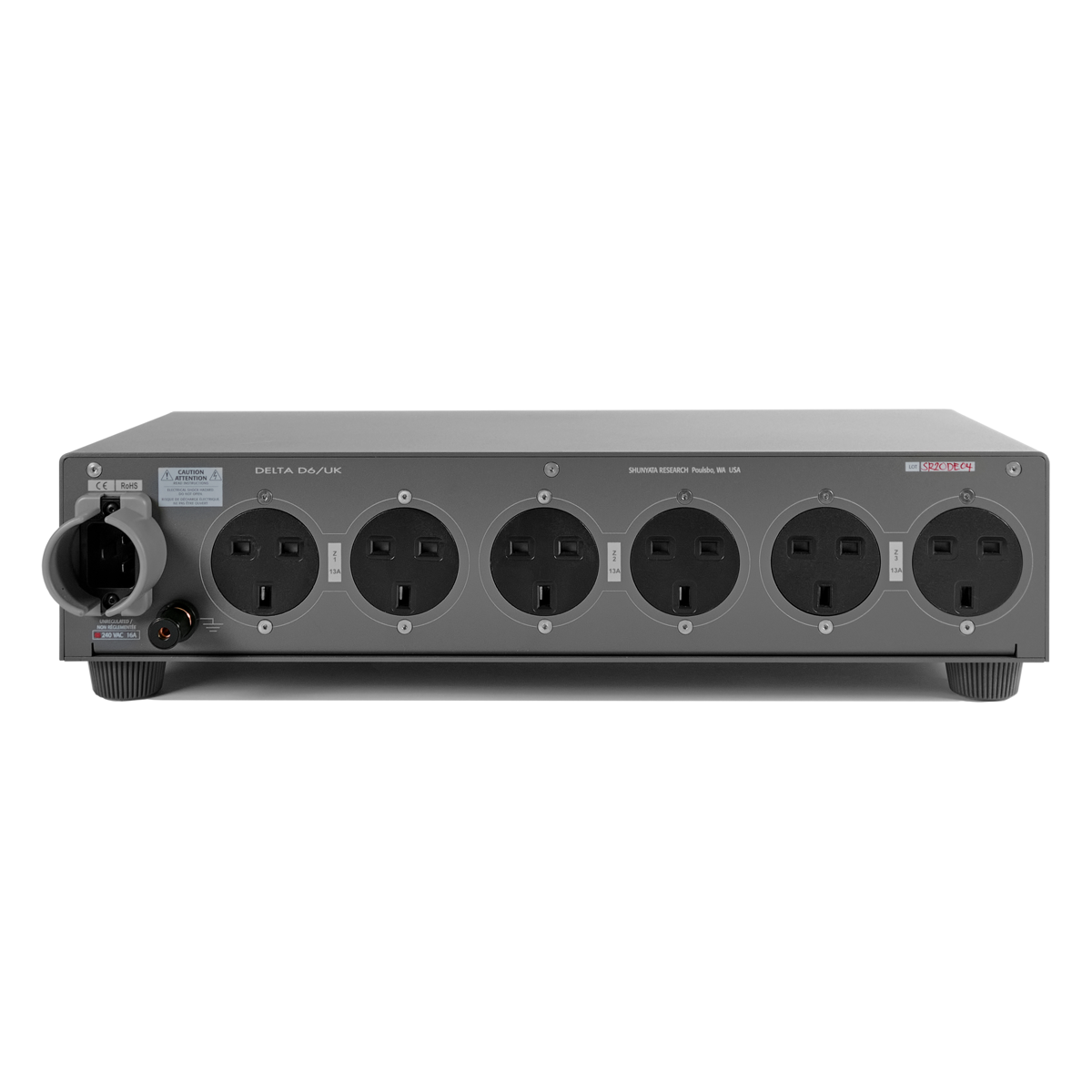

Shunyata Research Hydra Delta D6

€4,025.00

The Hydra Delta D6 by Shunyata Research is the first level of their Performance line of power distributors/conditioners, and benefits from many of the patented technologies present in their higher end versions. Shunyata's patented NIC™ technology employs a non-reactive ferroelectric substance to absorb high-frequency noise, and features custom-built Hubbell bronze-copper alloy outlets and a combination of 8 and 10 gauge copper wiring to ensure optimal current transfer.

Quantity:
Add To Cart

The Hydra Delta D6 by Shunyata Research is the first level of their Performance line of power distributors/conditioners, and benefits from many of the patented technologies present in their higher end versions. Shunyata's patented NIC™ technology employs a non-reactive ferroelectric substance to absorb high-frequency noise, and features custom-built Hubbell bronze-copper alloy outlets and a combination of 8 and 10 gauge copper wiring to ensure optimal current transfer.

The Hydra Delta D6 by Shunyata Research is the first level of their Performance line of power distributors/conditioners, and benefits from many of the patented technologies present in their higher end versions. Shunyata's patented NIC™ technology employs a non-reactive ferroelectric substance to absorb high-frequency noise, and features custom-built Hubbell bronze-copper alloy outlets and a combination of 8 and 10 gauge copper wiring to ensure optimal current transfer.

PRODUCT DETAILS

Maximum Voltage- 230 VAC r.m.s. unregulated

Input Current Ratings- Maximum Continuous Current: 20A

Output Current Ratings- Max Current/Outlet: 20A

Transient Suppression- Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection- Hydraulic Electromagnetic Breaker

Wiring System-
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring
Ratings: 600 V 105° C

Noise Suppression-
Input to Output (100 kHz – 30 MHz): > 40 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 50 dB reduction

Outlets & Connectors-
Zones of Isolation: 6 Zones
Inlet: IEC C19R
6 UK Plugs

Vibration Control-
Vibration dampening panels (internal)
AC outlet dampening gaskets

Construction-
Aluminum and steel chassis
Anodized, aluminum faceplate

GPNR-
Length: 127 mm
Diameter: 38 mm

Dimensions-
Width: 17.0 inches (20.32 cm)
Depth: 9 inches (22.9 cm)
Height: 4.6 inches (11.7 cm)

Weight- 4.3 kg
