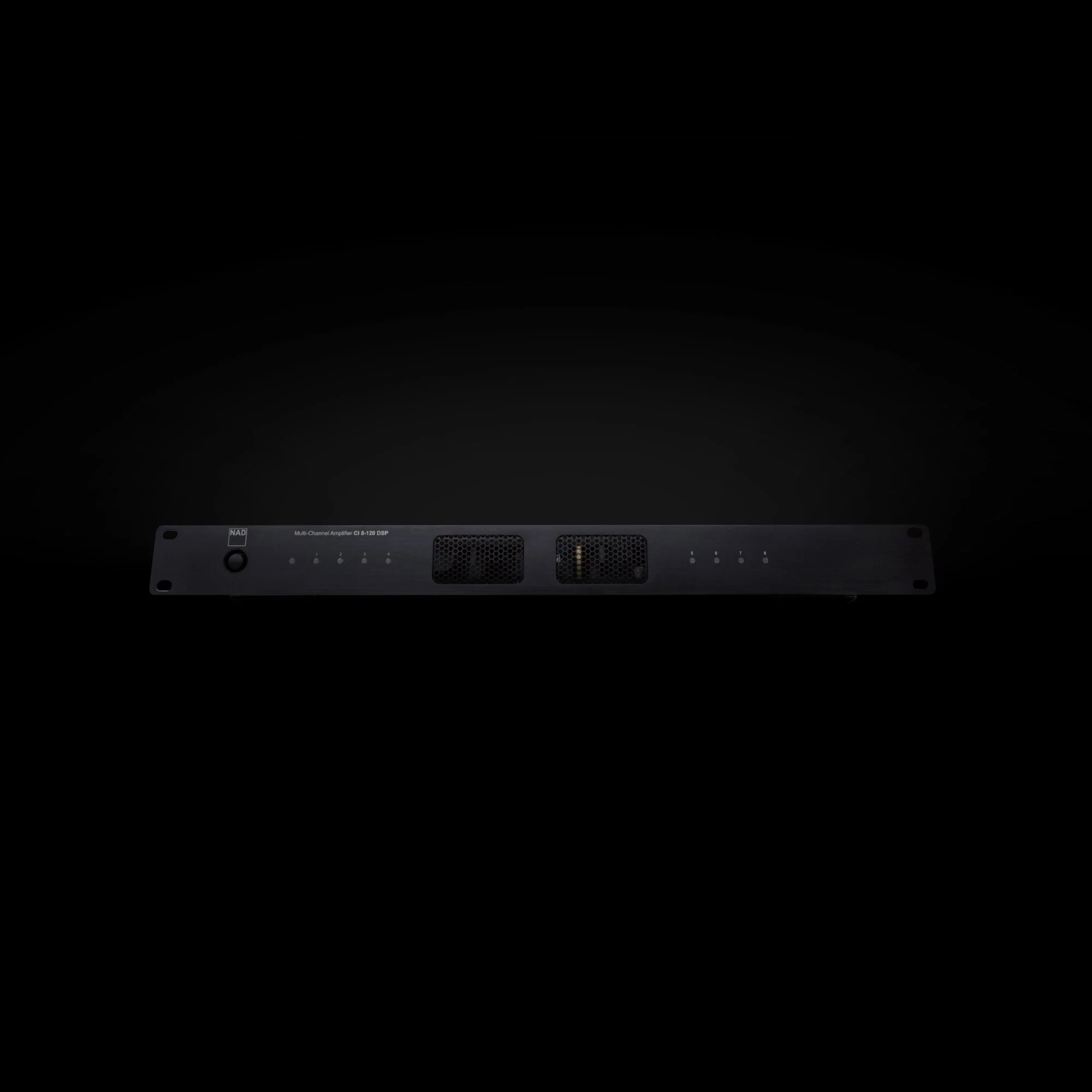

NAD CI 8 120 DSP
DESCRIPTION
Multi-Channel Amplifier
DESCRIPTION
Multi-Channel Amplifier
DESCRIPTION
Multi-Channel Amplifier
PRODUCT DETAILS
LINE INPUT, SPEAKER OUT
Continuous Output Power into 8 Ohms-
>120 W (all channels driven)
>130 W (two channels driven)
Continuous output power into 4 ohms-
>135 W (all channels driven)
>230 W (two channels driven)
Continuous output power into 8 ohms at Bridged mode-
>200 W (all channels driven)
>320 W (two channels driven)
THD (20 Hz – 20 kHz)- <0.05 % (1 W to 100 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio- >88 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (all channels driven)-
>130 W (1 kHz 8 ohms 0.1 % THD)
>150 W (1 kHz 4 ohms 0.1 % THD)
Clipping power into 8 ohms at Bridged mode-
>300 W (1 kHz 0.1 % THD – all channels driven)
>400 W (1 kHz 0.1 % THD – two channels driven)
IHF dynamic power (all channels driven)-
8 ohms: 125 W
4 ohms: 200 W
2 ohms: 180 W
IHF dynamic power (two channels driven)-
8 ohms: 145 W
4 ohms: 260 W
2 ohms: 300 W
IHF dynamic power (Bridged mode, all channels driven)-
8 ohms: 440 W
4 ohms: 380 W
2 ohms: 230 W
IHF dynamic power (Bridged mode, two channels driven)-
8 ohms: 480 W
4 ohms: 380 W
2 ohms: 300 W
Peak output current- >20 A (1 ohm, 1 ms)
Damping Factor- >110 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency Response- ±0.5 dB (20 Hz – 20 kHz)
Channel separation-
>70 dB (1 kHz)
>65 dB (10 kHz)
Maximum undistorted input level- 2900 mV
Input sensitivity (for 120 W in 8 ohms, maximum volume)- 1150 mV
Analog Input audio sense threshold (one channel with signal)- 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
Trigger IN level- 3 – 30 Vdc
Standby power- 0.5W
DIMENSION AND WEIGHT
Dimensions (W x H x D)- 483 x 45 x 435 mm (19 1/16 x 1 13/16 x 17 3/16”)
Shipping Weight- 10 kg (22 lbs)
