Meridian AC12
DESCRIPTION
The AC12 Comms Interface allows Meridian products which use SpeakerLink connections to be combined with products with non-SpeakerLink connection-types. The AC12 is purely passive in operation so all conversion is bi-directional. This allows the AC12 to be used in many differing applications. As it is passive, the AC12 does not require any power-supply or mains connection.
DESCRIPTION
The AC12 Comms Interface allows Meridian products which use SpeakerLink connections to be combined with products with non-SpeakerLink connection-types. The AC12 is purely passive in operation so all conversion is bi-directional. This allows the AC12 to be used in many differing applications. As it is passive, the AC12 does not require any power-supply or mains connection.
DESCRIPTION
The AC12 Comms Interface allows Meridian products which use SpeakerLink connections to be combined with products with non-SpeakerLink connection-types. The AC12 is purely passive in operation so all conversion is bi-directional. This allows the AC12 to be used in many differing applications. As it is passive, the AC12 does not require any power-supply or mains connection.

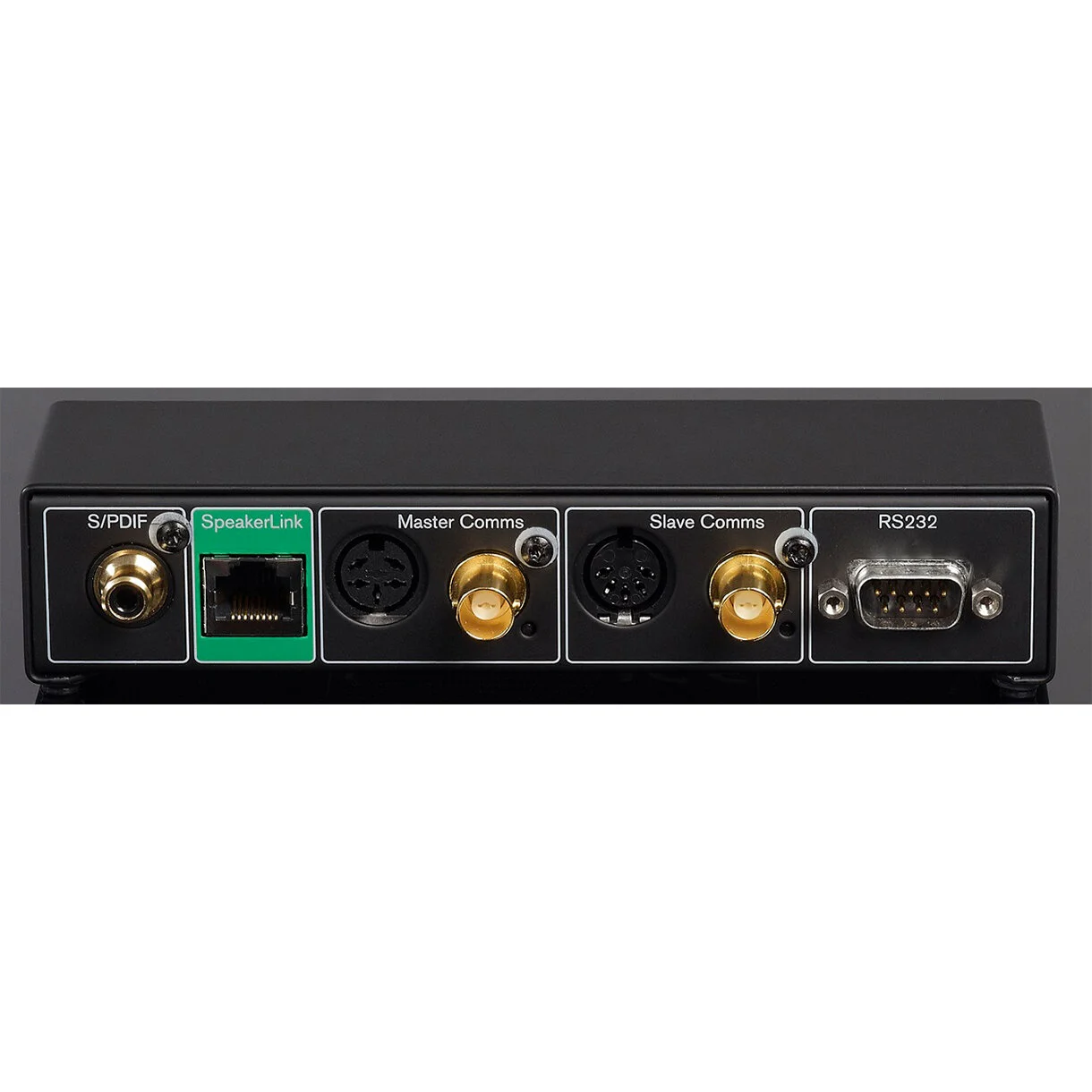

PRODUCT DETAILS
AUDIO INPUTS/OUTPUTS
1 x RS232 control signal (DB9)
1 x SpeakerLink (RJ45)
1 x Digital S/PDIF coax (phon0)
1 x Master Comms” on a 240° 5-pin DIN socket
1 x Master Comms” on BNC socket
1 x Meridian “Slave Comms” on 180° 5-pin DIN socket
1x Meridian “Slave Comms” on BNC socket
DIMENSIONS / WEIGHT
HEIGHT- 35mm [1.38in]
WIDTH- 170mm [6.7in]
DEPTH- 50mm [2in]
WEIGHT- 0.35 kg (12.4 oz)
