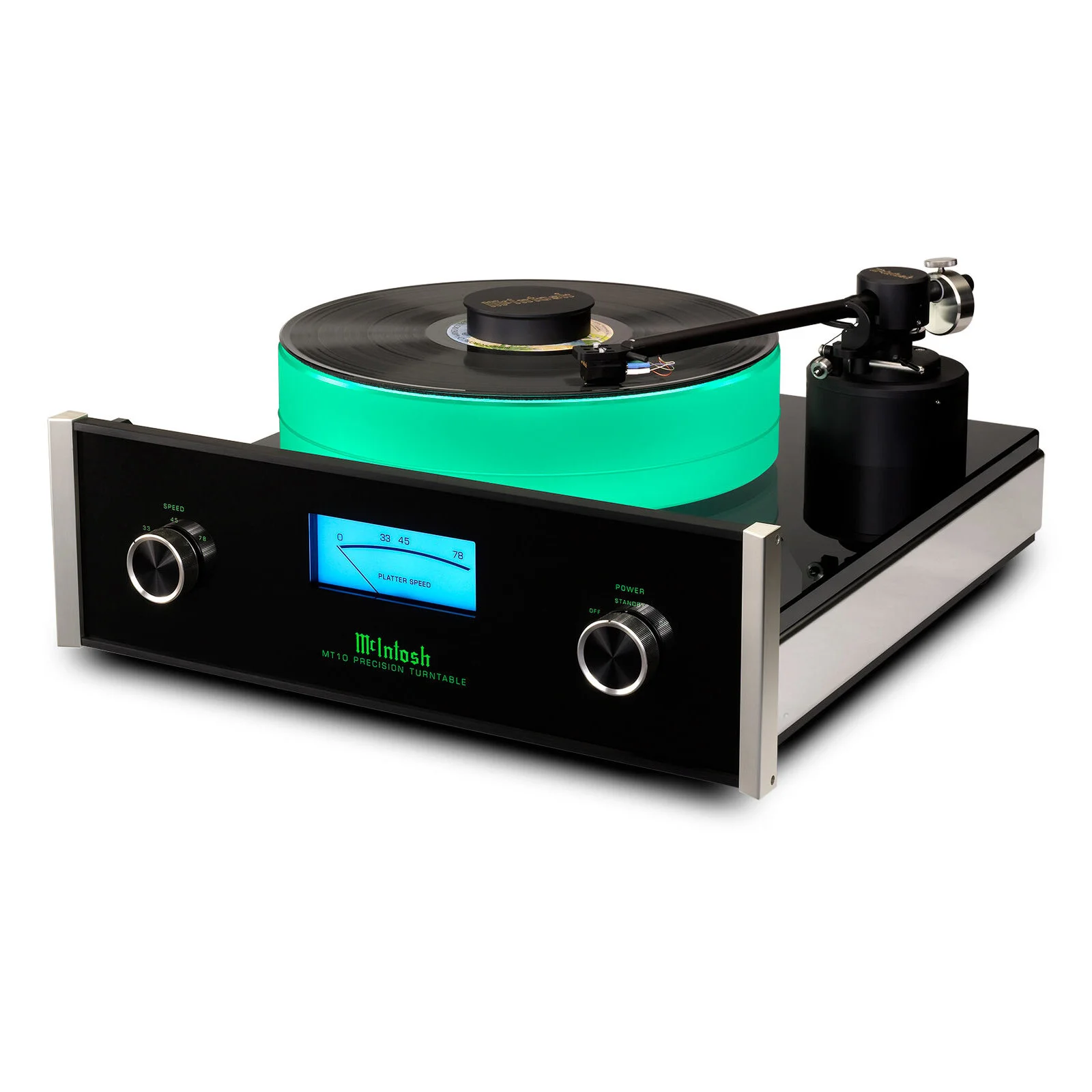

McIntosh MT10
Precision Turntable
Belt drive
Moving Coil cartridge
Illuminated speed meter
Precision Turntable
Belt drive
Moving Coil cartridge
Illuminated speed meter
Precision Turntable
Belt drive
Moving Coil cartridge
Illuminated speed meter
PRODUCT DETAILS
CARTRIDGE SPECIFICATIONS
Cartridge Type- Moving Coil, Low Output
Output Level- 0.5 mV at 5 cm/s
Load Impedance- 400 to 500 Ohms recommended
Frequency Response- 20Hz to 50kHz
Channel Separation- Greater than 30dB at 1Khz
Compliance- 6 x 10-6 cm/dyne
Recommended Tracking Force- 2.4 g
Channel Difference- Less than 0.3dB at 1kHz
Total Mass- 11 g
Stylus- Elliptical Diamond
Cantilever Material- Aluminum
TONEARM SPECIFICATIONS
Bearing- Sapphire and Ceramic
Arm Tube- Dural-Aluminum
Counterweight- Eccentric
Adjustments- Vertical Tracking Angle, Antiskate, Azimuth
TURNTABLE SPECIFICATIONS
Playback Speeds- 33-1/3, 45 and 78 rpm
Motor Type- DC Brushless
Speed Control- Electronic w/ braking feature
Platter- Silicon Acrylic
Platter Bearing- Magnetic Suspended Ceramic
Signal To Noise Ratio- 41dB - 44dB
Wow & Flutter- 0.10% - 0.15%
CONNECTIVITY
Stereo Outputs Unbalanced- 1
CONTROL
Power Control Input- 1
Power Control Output- 1
Platter Light- Yes
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)- 17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.
Weight- 42 lbs (19 kg)
Shipping Weight- 63 lbs (28.6 kg)
