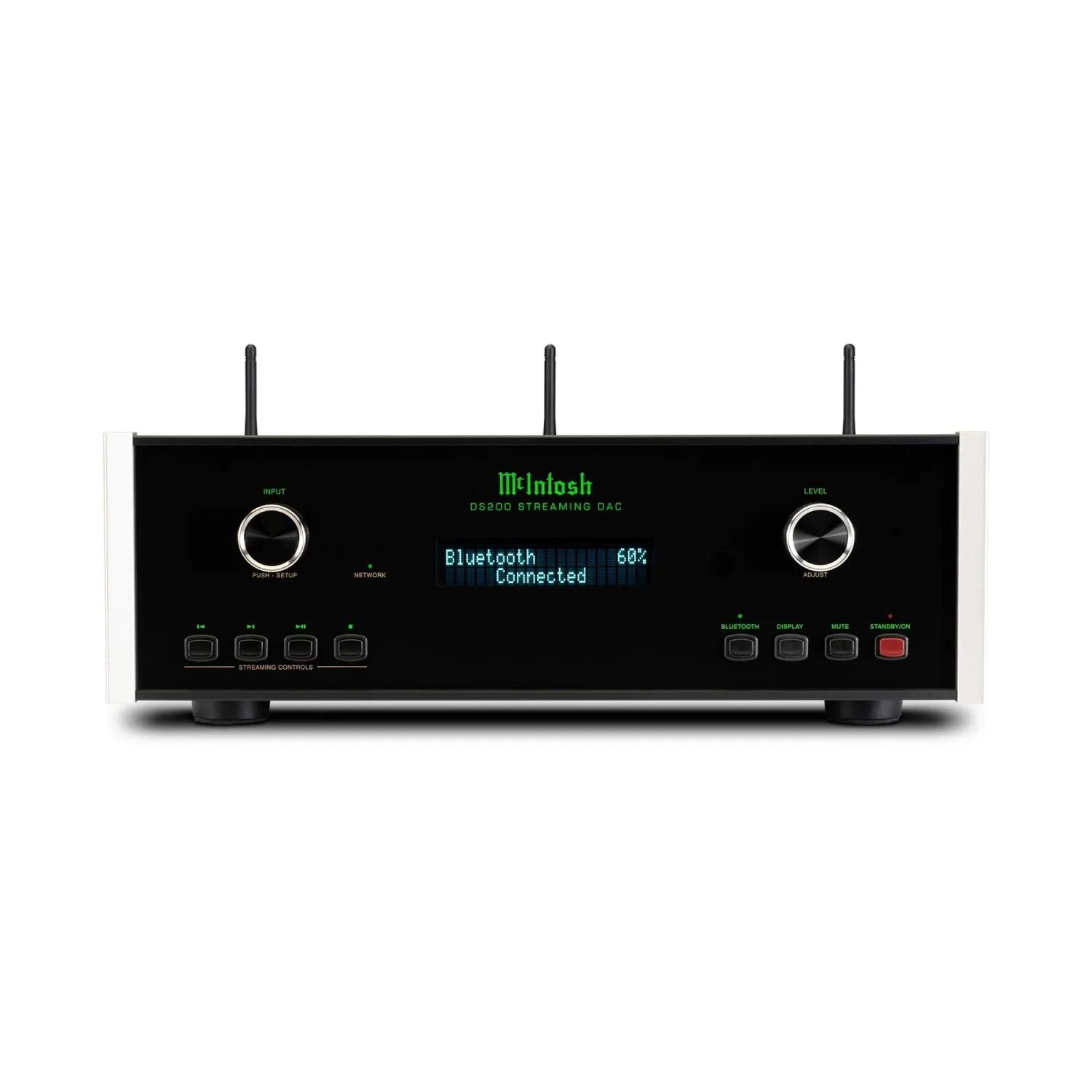

McIntosh DS200
Available in March 2025
Streaming DAC
Effortless Streaming Meets High-End Audio
Works with Apple® AirPlay®; Bluetooth®; Google Cast™; Spotify® Connect; TIDAL® Connect
Roon Ready and Roon Tested
Google Assistant compatible for voice control
No special control app or technical skills needed
Includes 8 digital audio inputs
Can serve as preamplifier in an all-digital system
Available in March 2025
Streaming DAC
Effortless Streaming Meets High-End Audio
Works with Apple® AirPlay®; Bluetooth®; Google Cast™; Spotify® Connect; TIDAL® Connect
Roon Ready and Roon Tested
Google Assistant compatible for voice control
No special control app or technical skills needed
Includes 8 digital audio inputs
Can serve as preamplifier in an all-digital system
Available in March 2025
Streaming DAC
Effortless Streaming Meets High-End Audio
Works with Apple® AirPlay®; Bluetooth®; Google Cast™; Spotify® Connect; TIDAL® Connect
Roon Ready and Roon Tested
Google Assistant compatible for voice control
No special control app or technical skills needed
Includes 8 digital audio inputs
Can serve as preamplifier in an all-digital system
PRODUCT DETAILS
Electronic Specifications
Frequency Response-
+/-0.5dB from 20Hz to 20kHz
+0.5/-3dB from 5Hz to 60kHz (source dependent)
Total Harmonic Distortion- 0.005%
Fixed Output Level-
2.0Vrms Unbalanced
4.0Vrms Balanced
Adjustable Output Level-
0 - 8.0Vrms Unbalanced
0 - 16.0Vrms Balanced
Signal To Noise Ratio- 100dB
Dynamic Range- 100dB
Output Impedance- 100 ohms Unbalanced and Balanced
Connectivity
Digital Coaxial Input- 2
Digital Optical Input- 2
Digital USB Input- 1
Digital MCT Input- 1
Digital AES/EBU Input- 1
HDMI Input- 1 (ARC)
Wireless Input-
Wi-Fi: a, b, g, n, ac; 2.4/5 GHz
Bluetooth 5.0: AVRCP, A2DP, aptX, aptX HD, aptX LL
Streaming Support- Apple AirPlay, Google Cast, Roon, Spotify Connect, Tidal Connect
Balanced Output- 1 (can be set to either fixed or variable mode)
Unbalanced Output- 1 (can be set to either fixed or variable mode)
Network Connection- 1
Digital Audio Specifications
Digital-to-Analog Converter (DAC) Type- 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate- 24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate- 24-bit/44.1kHz to 192kHz
Digital MCT Input Sample Rate-
16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate-
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz
Control
Power Control Input- 1
Power Control Output- 1
Rear Panel Data Input- 1
Rear Panel IR Sensor Input- 1
RS232 Control Input- 1
Weights & Dimensions
Unit Dimensions (W x H x D)- 44.5cm x 15.2cm x 43.2cm
Unit Weight- 9.3 kg
Shipping Weight- 12.5 kg
