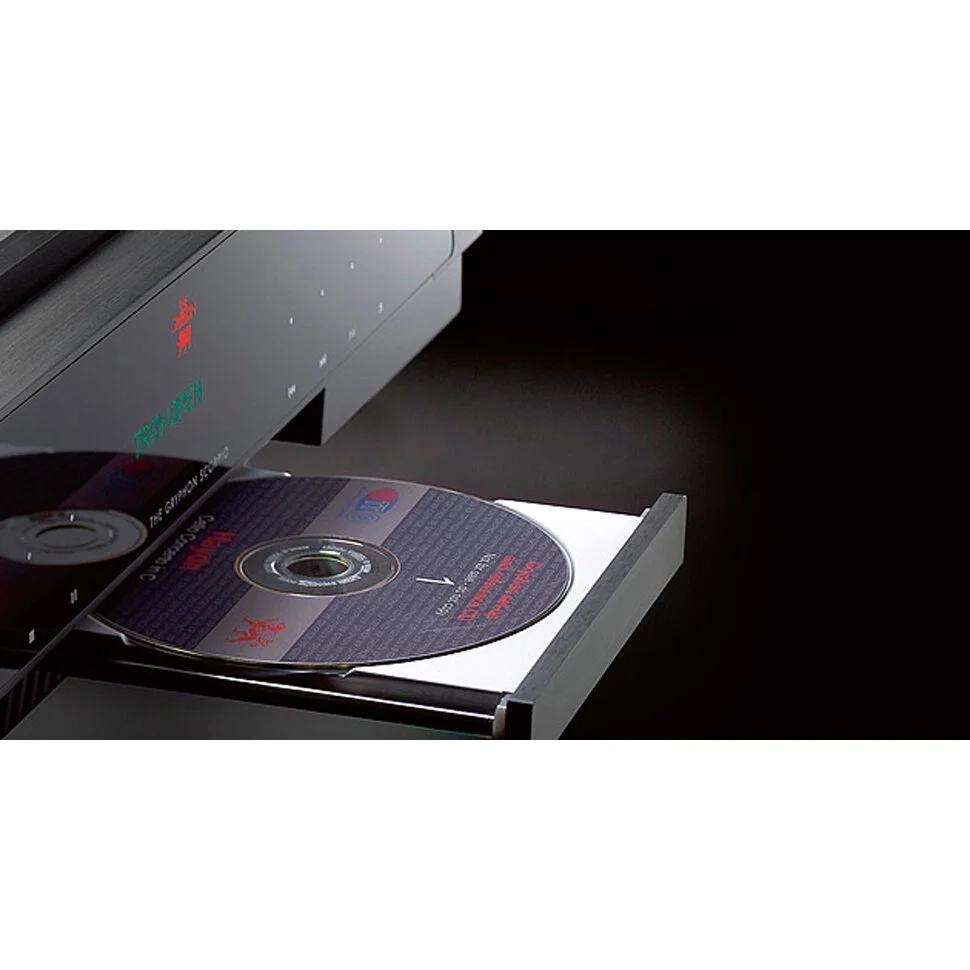

Gryphon Scorpio S
Features
Dual mono
Class A
DC-coupling
Remote control
Microprocessor controlled
Software upgradeable
Vaccum Fluorescent Display
Dimmable Display intensity
Touch Buttons
Features
Dual mono
Class A
DC-coupling
Remote control
Microprocessor controlled
Software upgradeable
Vaccum Fluorescent Display
Dimmable Display intensity
Touch Buttons
Features
Dual mono
Class A
DC-coupling
Remote control
Microprocessor controlled
Software upgradeable
Vaccum Fluorescent Display
Dimmable Display intensity
Touch Buttons
Electrical
Balanced analog/DAC circuit YES
Converters 4 x 32bit/192KHz
Formats PCM
PCM via input 1 to 4, Fs min./max. 22kHz to 192kHz
Output level balanced, max 4,0Vrms
+/-5,6Vpp
S/N Unweighted, 20-20000hz < -103dB
S/N Weighted, A-weighted < -107dB
Distortion (THD+N) <0,0035% @ 0dB
Channel Separation Infinite
Digital balanced output (AES/EBU) 1 x BNC (SPDIF)
Analog output impedance (20-20000Hz) 20Ohm
Balanced analog outputs, pr. channel 1 x XLR
Bandwidth (-3dB), max. 0 - 96kHz
Power consumption (Stand-by) 5W
Power consumption (Maximum) 40W
Power consumption (Idle) 35W
Power Supply Capacity 40.000 uF
No. of AC inlets / cable plug type 1x IEC C13
Mechanical
Size (W x H x D) cm, netto 48x13.5x41.5
Weight, netto 9.6 kg
Shipping weight and dimensions (L x W x H) 13,7 kg, 56x51x24cm
