Gryphon Essence Preamplifier
Features
Dual mono
Class A
Green Bias
DC-coupling
AV-input

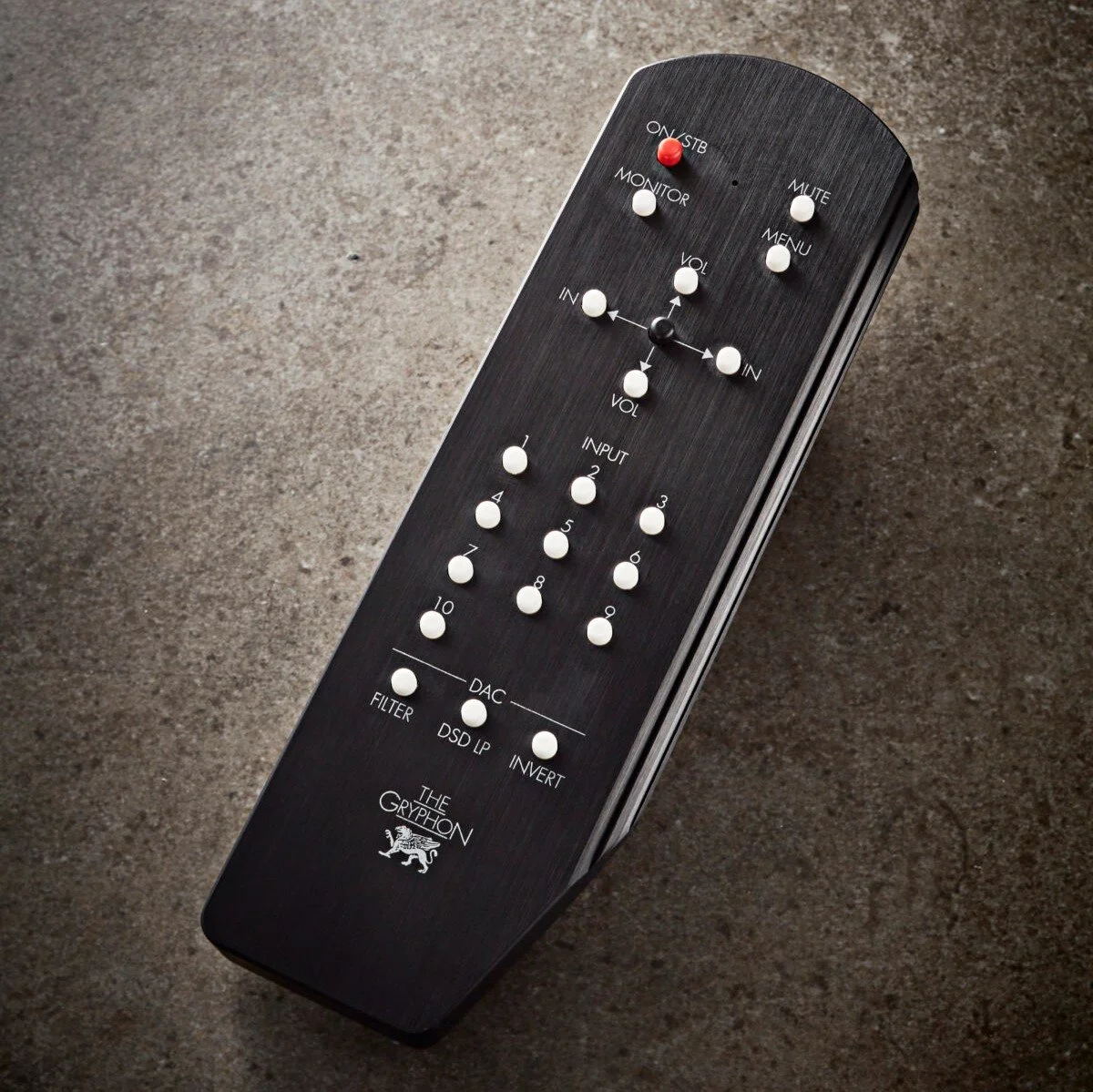

Remote control
+12V link (power up/down)
Microprocessor controlled
Software upgrade
Vacuum Fluorescent Display
Touch Buttons
Balanced circuit
Features
Dual mono
Class A
Green Bias
DC-coupling
AV-input
Remote control
+12V link (power up/down)
Microprocessor controlled
Software upgrade
Vacuum Fluorescent Display
Touch Buttons
Balanced circuit
Features
Dual mono
Class A
Green Bias
DC-coupling
AV-input
Remote control
+12V link (power up/down)
Microprocessor controlled
Software upgrade
Vacuum Fluorescent Display
Touch Buttons
Balanced circuit
PRODUCT DETAILS
Electrical
Output level balanced, max- 23Vrms, +29,5dBu
Noise, Unweighted, 20-20000hz- < -90dBu
Noise, A-weighted- < -94dBu
Distortion (THD+N)- < 0,005%
Gain- +18dB
Bandwidth (-3dB)- 0 - 1MHz
Channel Separation- Infinite
Input impedance, balanced (20-20000Hz)- 50KOhm
Input impedance, single ended (20-20000Hz)- 25KOhm
Output impedance (20-20000Hz)- 15Ohm

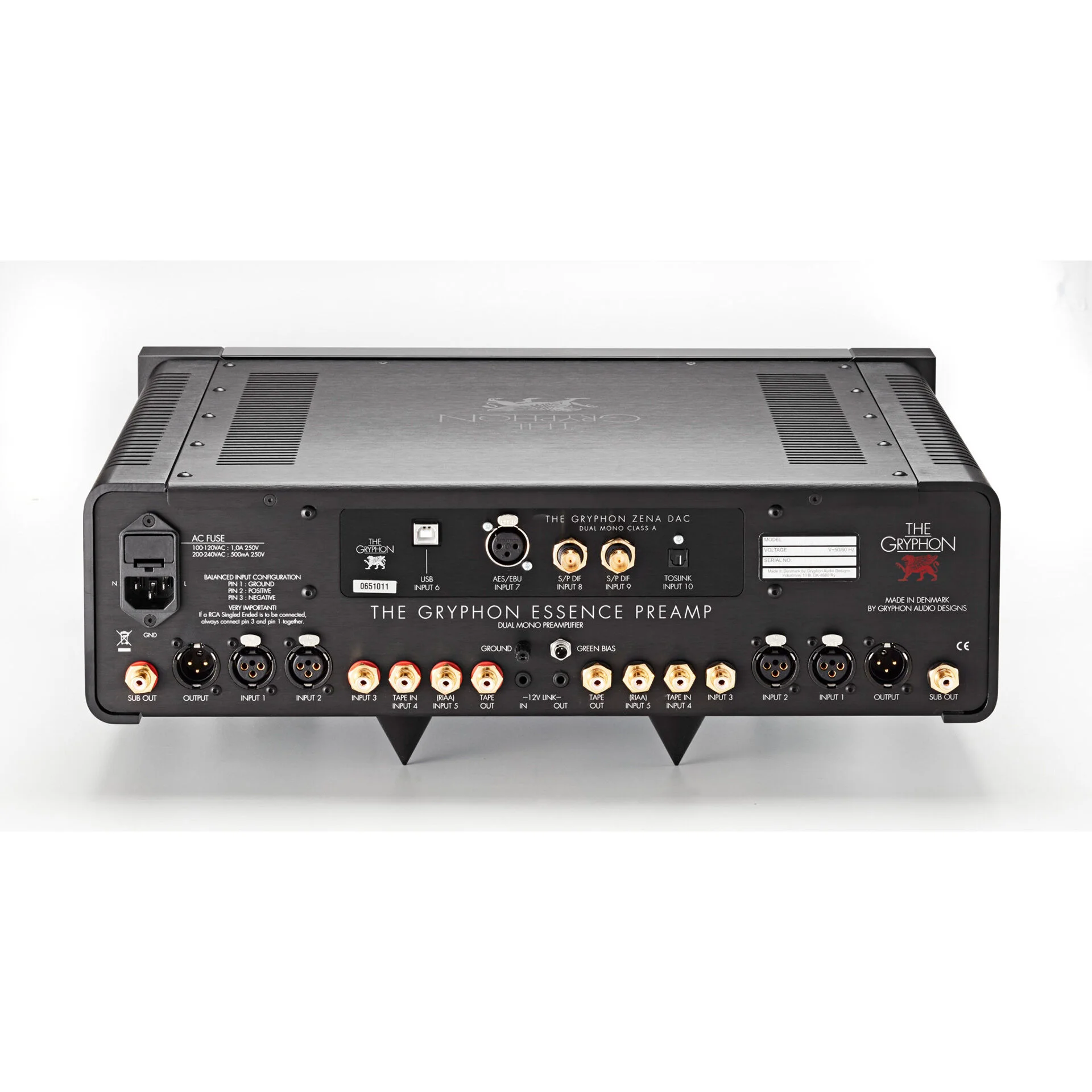

Balanced inputs, pr. channel- 2 x XLR
Single ended inputs, pr. channel- 3 x RCA
Balanced outputs, pr. channel- 1 x XLR
Single ended outputs, pr. channel- 2 x RCA (sub + tape out)
Power consumption (Stand-by)- < 0.5W
Power consumption (Maximum)- 50 W
Power consumption (Idle)- 50W
Power Supply Capacity- 2 x 26000 uF
No. of AC inlets / cable plug type- 1x IEC C13
Mechanical
Size (W x H x D) cm, net- 47x16.5x38.5
Weight, netto (without optional modules)- 13.4 kg
Shipping weight and dimensions (L x W x H)- 24 kg, 2 x 59x57x28cm
