Gato Audio AMP-150 AE
Features
2x 150W@8ohm / 2x 250W@4ohm
TwinFET technology output stage
High bandwidth power supply
Balanced and unbalanced inputs
Analogue multi display, clear and informative
Direct function; enables use in home theater sytems
Nonmagnetic enclosure
Designed, developed and build in Copenhagen, Denmark
Features
2x 150W@8ohm / 2x 250W@4ohm
TwinFET technology output stage
High bandwidth power supply
Balanced and unbalanced inputs
Analogue multi display, clear and informative
Direct function; enables use in home theater sytems
Nonmagnetic enclosure
Designed, developed and build in Copenhagen, Denmark
Features
2x 150W@8ohm / 2x 250W@4ohm
TwinFET technology output stage
High bandwidth power supply
Balanced and unbalanced inputs
Analogue multi display, clear and informative
Direct function; enables use in home theater sytems
Nonmagnetic enclosure
Designed, developed and build in Copenhagen, Denmark
PRODUCT DETAILS
Technical Specifications
OUTPUT POWER- 2x 150 W RMS 8 Ω / 2x 250 W RMS 4 Ω
INPUT IMPEDANCE- 20kΩ RCA or 40kΩ Balanced
FREQUENCY RESPONSE- 20 Hz - 20 kHz ± 0.5 dB, and 2 Hz - 100 kHz ± 3 dB
PREAMPLIFIER OUTPUT IMPEDANCE- 100 Ω RCA and 200 Ω Balanced
TOTAL HARMONIC DISTORTION- < 0,05 % at rated power
SIGNAL TO NOISE RATIO A-WEIGHTED- > 100 dB
VOLTAGE GAIN- 27 dB (+10 dB headroom)
RECOMMENDED SPEAKER LOAD- 4 Ω - 16 Ω
LOAD PROTECTION- Speakers < 1.5Ω

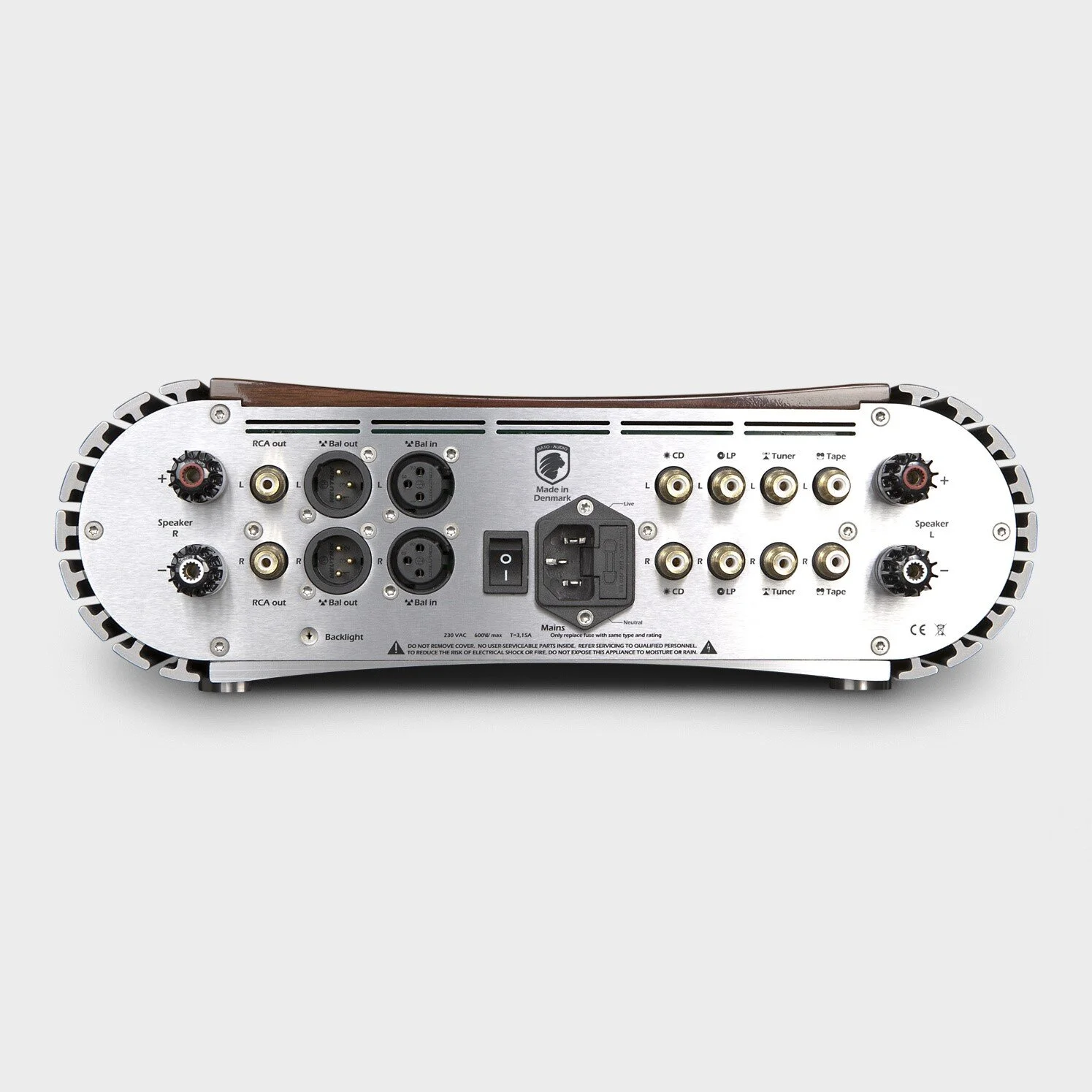

CONNECTORS
BALANCED ANALOGUE INPUTS- 1 pair gold plated XLR Neutrik
UNBALANCED ANALOGUE INPUTS- 4 pairs of gold plated RCA Stereo
BALANCED ANALOGUE OUTPUTS- 1 pair gold plated XLR Neutrik
UNBALANCED ANALOGUE OUTPUTS- 1 pair of gold plated RCA Stereo
SPEAKER OUTPUT- 2 pairs of gold plated safety banana
SIZE AND WEIGHT
POWER REQUIREMENTS- 115 VAC/230 VAC, 50 Hz/60 Hz
FUSE- 20mm Sand-filled, 6 AT@115 VAC, 3.15 AT@230VAC
POWER CONSUMPTION STDB/IDLE/MAX- < 1W/40W/600W
DIMENSIONS (WXHXD)- 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5"
WEIGHT- 14 kg / 30.4 lb
