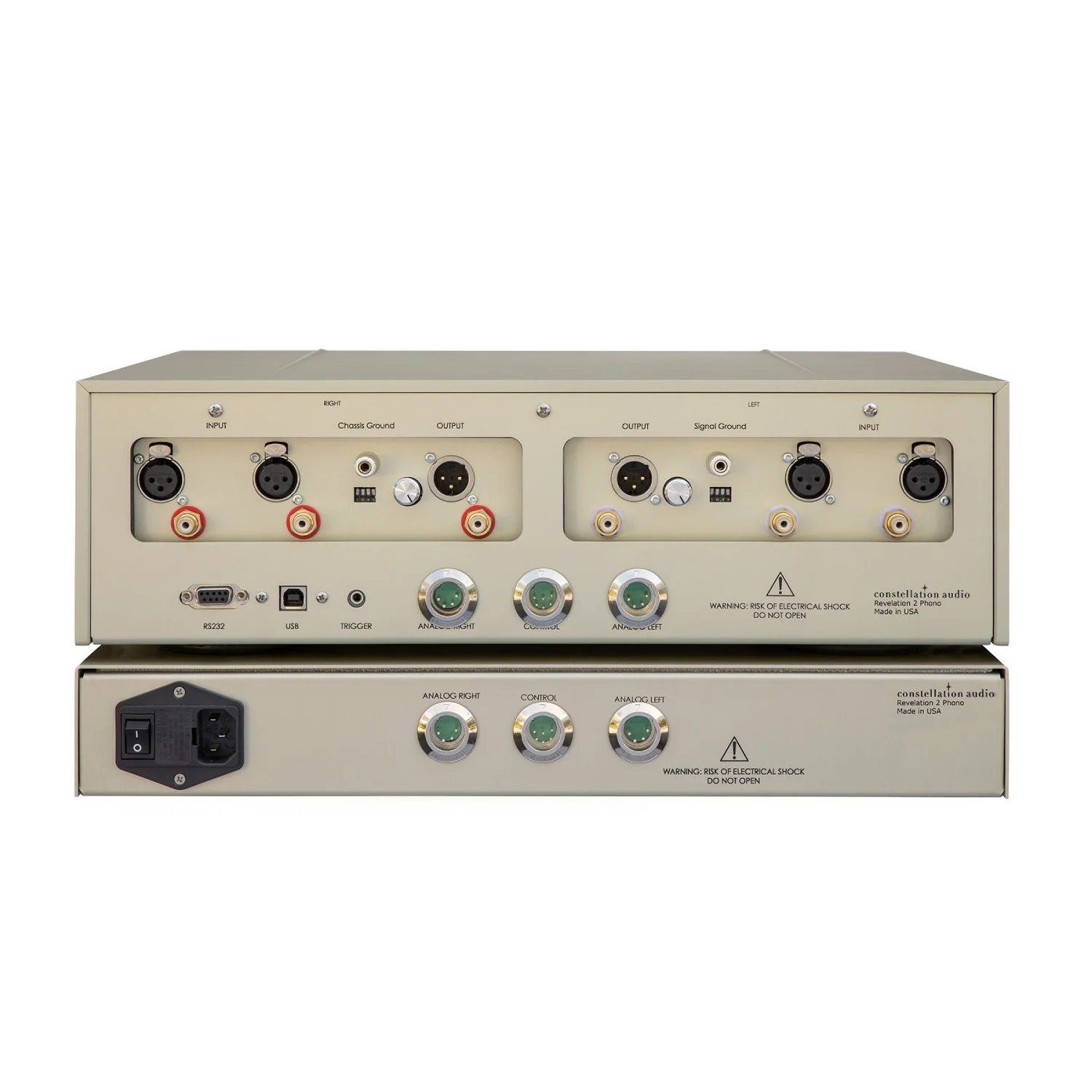

Constellation Audio Revelation 2 Phono
The Revelation 2 Phono is the most straightforward realization of our design team’s dream to create the ultimate phono stage. We’ve updated it with C-SMPS, a proprietary, ultra-quiet, ultra-efficient power supply that reveals the subtlest nuances.
The Revelation 2 Phono is the most straightforward realization of our design team’s dream to create the ultimate phono stage. We’ve updated it with C-SMPS, a proprietary, ultra-quiet, ultra-efficient power supply that reveals the subtlest nuances.
The Revelation 2 Phono is the most straightforward realization of our design team’s dream to create the ultimate phono stage. We’ve updated it with C-SMPS, a proprietary, ultra-quiet, ultra-efficient power supply that reveals the subtlest nuances.
PRODUCT DETAILS
Inputs (MC)-
2 XLR Stereo
2 RCA Stereo
Outputs-
1 XLR Stereo
1 RCA Stereo
Gain- 65 dB max (balanced and unbalanced)
Output noise- -96 dB re 2V output, 20 Hz to 20 kHz
THD+N- <0.008%, 10Hz - 20kHz
Frequency response-
(+/-)0.10db 10Hz - 20kHz
5 Ω to 1000 Ω, MC input
10K Ω to 47K Ω, MM input
Load impedance- 0,100 or 200 pF, MM input
Output Impedance- < 5 Ω (balanced and unbalanced)
EQ- RIAA curve
Weight (preamp + power supply unit)- 35 lbs./16 kg
Weight (power supply only)- 11 lbs./5 kg
Phono dimensions- 17"/432mm X 15"/381mm X 5.5"/140mm (WDH)
Dimensions (power supply unit)- 17"/432mm X 14.5"/368mm X 2.75"/70mm (WDH)
