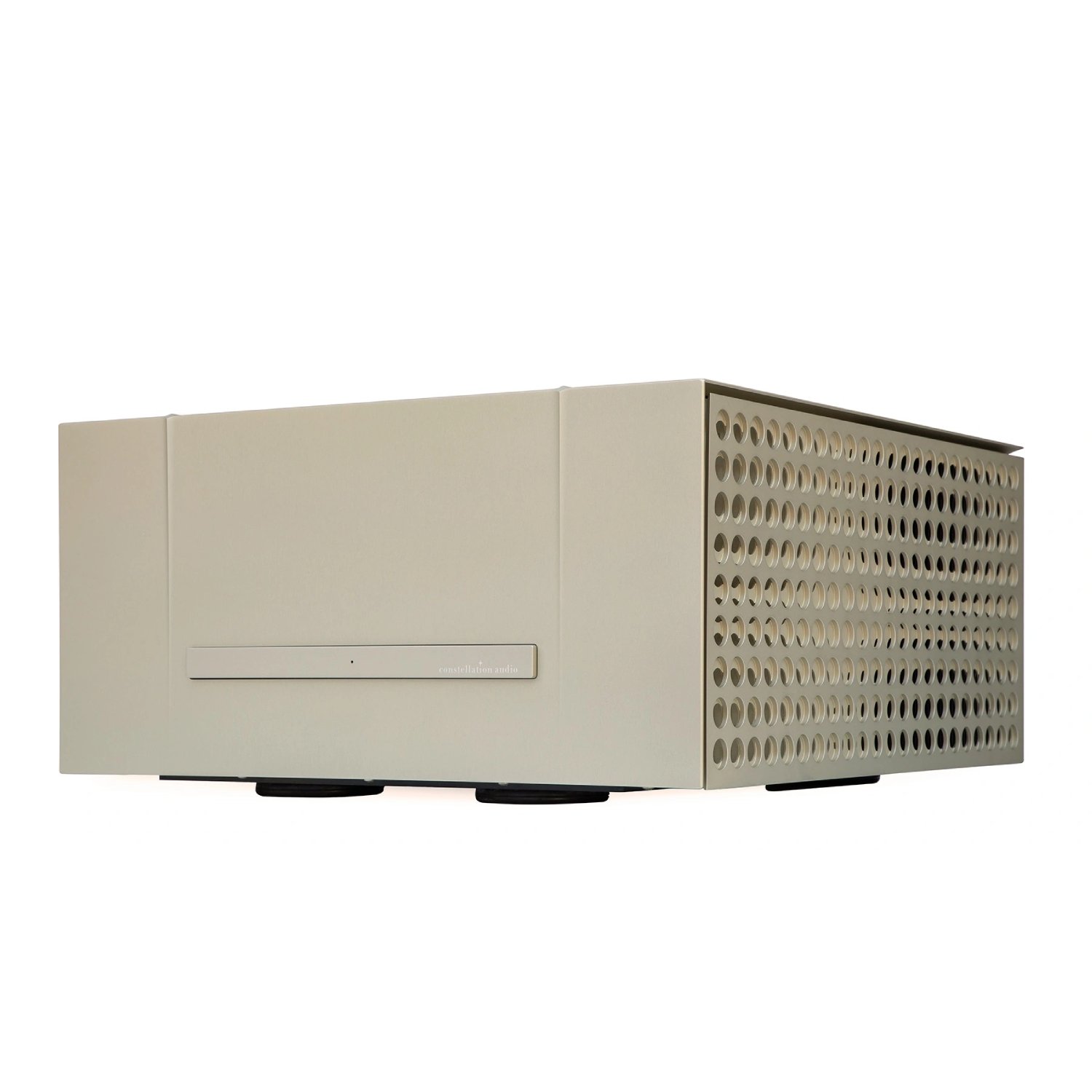

Constellation Audio Inspiration 2 Stereo
Our Inspiration 2 Stereo and Mono amplifiers distill the power and passion of our original amplifiers into a more compact chassis. And now we’ve added C-SMPS, the best amplifier power supply ever created. The Inspiration 2 amplifiers use our Balanced Bridged technology: a musical, single-ended amplifier module. To achieve the desired output, we add modules rather than increasing circuit complexity. The result? Ample power to drive any speaker with the subtlety of a small amplifier.
Our Inspiration 2 Stereo and Mono amplifiers distill the power and passion of our original amplifiers into a more compact chassis. And now we’ve added C-SMPS, the best amplifier power supply ever created. The Inspiration 2 amplifiers use our Balanced Bridged technology: a musical, single-ended amplifier module. To achieve the desired output, we add modules rather than increasing circuit complexity. The result? Ample power to drive any speaker with the subtlety of a small amplifier.
Our Inspiration 2 Stereo and Mono amplifiers distill the power and passion of our original amplifiers into a more compact chassis. And now we’ve added C-SMPS, the best amplifier power supply ever created. The Inspiration 2 amplifiers use our Balanced Bridged technology: a musical, single-ended amplifier module. To achieve the desired output, we add modules rather than increasing circuit complexity. The result? Ample power to drive any speaker with the subtlety of a small amplifier.
PRODUCT DETAILS
Inputs-
2 XLR (1 Constellation Link)
2 RCA
Max power @ 0.1% THD+N, 20Hz-20kHz @ 8 Ω- 240W
Max power @ 0.1% THD+N, 20Hz-20kHz @ 4 Ω- 420W
Input sensitivity @ power at 0.1% into 8 Ω- 15V direct i/p, 3V non-direct
Input sensitivity @ power at 0.1% into 4 Ω- 12.5V direct i/p, 2.6V non-direct
Outputs- Metal binding posts
Frequency response- 10Hz - 80KHz +/- 0.05dB
Gain - direct input- 12 dB
Gain - non-direct input- 25.2 dB
AC power draw - standby- < 0.25W
AC power draw - idle- 135W
AC power draw - @ max power in 8 Ω- 1300W
AC power draw - @ max power in 4 Ω- 1500W
Power factor - partial power- 0.98
Power factor - full power- 1 . 00
Damping factor- 80
S/N ratio DC-90KHz ref 1 volt, A weighted- 100dB
S/N ratio DC-90KHz ref full power, unweighted- 115dB
S/N ratio DC-90KHz ref full power, A weighted- 125dB
Output impedance- 0.1Ω
Weight- 43 lbs./19.5 kg
Dimensions- 18.75"/476mm x 24.25/616mm x 11.5"/292mm (WDH)
